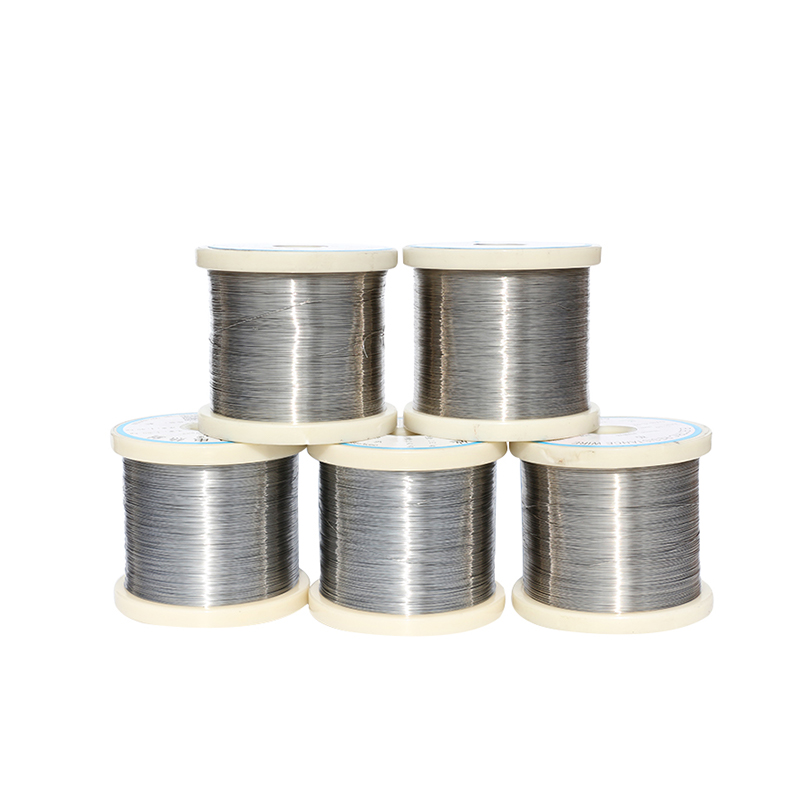

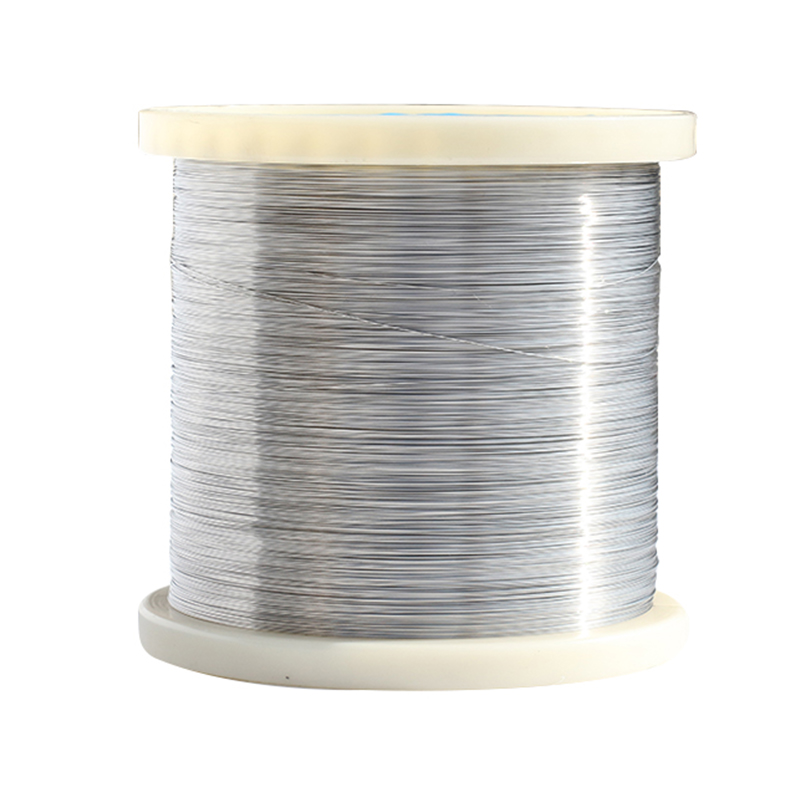

6J12 High-Accuracy Manganin Alloy

6J12 high-accuracy manganin alloy contains only a small amount of nickel, which is primarily used to improve the alloy's corrosion resistance and, in conjunction with manganese, fine-tune the temperature coefficient of resistance, minimizing its fluctuations near room temperature. As a transfer standard for metrology departments, 6J12 is manufactured into sealed, oil-immersed resistors, utilizing its extremely low TCR and aging stability as a resistance reference. In power electronics measurements, 6J12 is used to manufacture shunts for measuring large currents. Due to its extremely low thermoelectric potential against copper, it effectively eliminates interference from terminal temperature differences caused by heating from large currents. In pressure sensors and weighing systems requiring long-term accuracy, the low drift characteristics of 6J12 ensure that the sensors do not require frequent calibration across different seasons and room temperatures.

PREV：6J40 Constantan Alloy Precision Electrical Alloys NEXT：No next article

Specification
About Haiven
Contact Us

Grade		CONSTANTAN	MANGANIN	MANGANIN	MANGANIN
Grade		6J40	6J12	6J8	6J13
Main chemical composition (%)	Mn	1–2	11–13	8–10	11–13
	Ni	39–41	2–3	–	2–5
	Cu	Bal	Bal	Bal	Bal
Max Working Temperature (℃)		5–500	5–45	10–80	10–81
Density (g/cm³)		8.88	8.44	8.7	8.4
Resistivity (μΩ·m, 20℃)		0.48±3%	0.47±3%	0.35±5%	0.44±4%
Elongation (φ>1.0)		≥15	≥15	≥15	≥15
Resistance Temperature Coefficient (10⁻⁵/℃, 20–600℃)		– 40~+40	–3~+20	– 5~+10	0~+40
Thermo EMF (μV/℃, 0–100℃)		45	1	2	2
