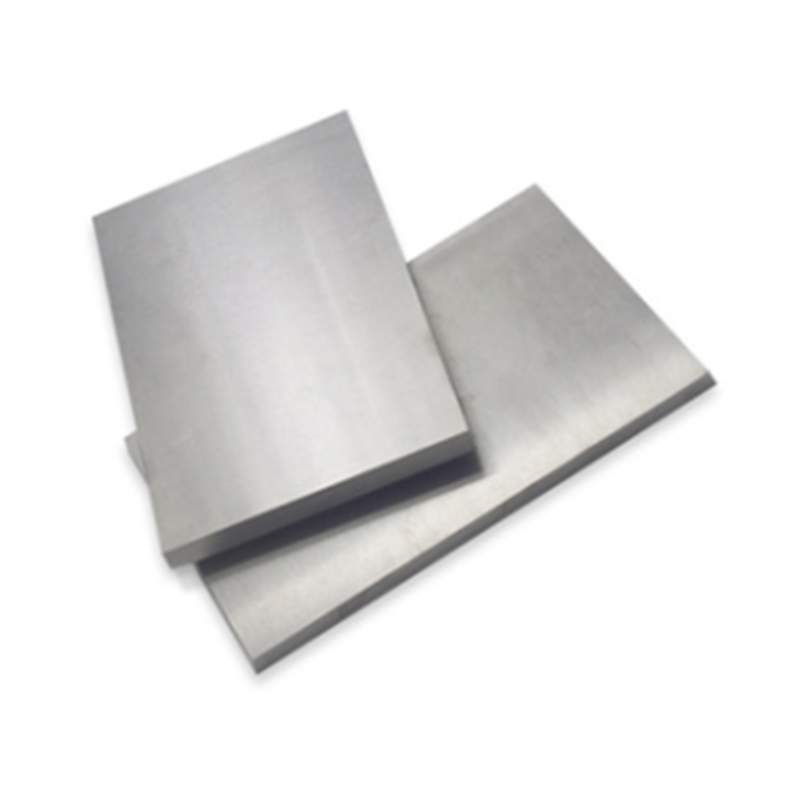

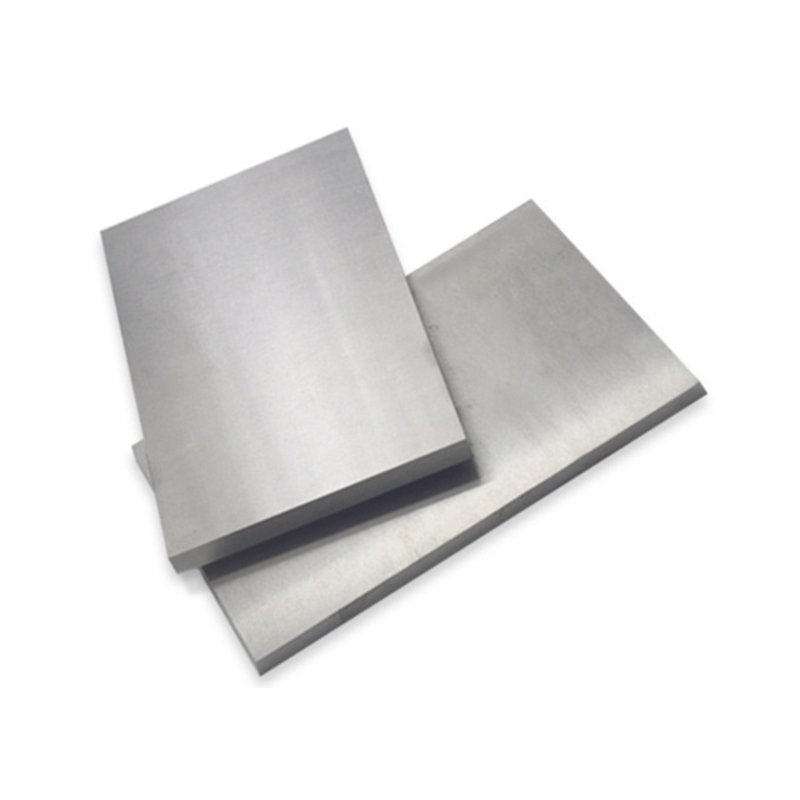

GH1016 Nickel-Base High Temperature Alloy

GH1016 nickel-based high-temperature alloy, through the scientific proportioning of various alloying elements (such as chromium, tungsten, molybdenum, and niobium), forms an extremely stable austenitic matrix, allowing it to exhibit a very low creep rate even under high thermal loads and complex stresses. Chromium is the main element providing oxidation and corrosion resistance. Within this content range, a dense protective film can form on the alloy surface, effectively resisting high-temperature oxidation and hot corrosion. Tungsten (W: 5.0 - 6.0%) and molybdenum (Mo: 2.6 - 3.3%), these two refractory elements, primarily provide solid solution strengthening. Because the atomic radii of W and Mo are larger than those of nickel and iron, their incorporation into the crystal lattice causes significant lattice distortion, significantly increasing the resistance to dislocation movement, thereby improving the creep strength of the alloy.

PREV：GH1015 20% Cr High Temperature Alloy NEXT：GH1035 Iron-Nickel Base High Temperature Alloy

Specification
About Haiven
Contact Us

Grade	Original Grade	Cr	Ni	W	Mo	Al	Ti	Fe	Nb
GH1015	GH15	19.0-22.0	34.0-39.0	4.8-5.8	2.5-3.2	—	—	Bal	1.0-1.6
GH1016	GH16	19.0-22.0	32.0-36.0	5.0-6.0	2.6-3.3	—	—	Bal	0.9-1.4
GH1035	GH35	20.0-23.0	35.0-40.0	2.5-3.5	—	≤0.50	0.7-1.2	Bal	1.2-1.7
GH1040	GH40	15.0-17.0	24.0-27.0	—	5.5-7.0	—	—	Bal	—
GH1131	GH131	19.0-22.0	25.0-30.0	4.8-6.0	2.8-3.5	—	—	Bal	0.7-1.3
GH1140	GH140	20.0-23.0	35.0-40.0	1.4-1.8	2.0-2.5	0.2-0.6	0.7-1.2	Bal	—
GH2018	GH18	18.0-21.0	40.0-44.0	1.8-2.2	3.7-4.3	0.35-0.75	1.8-2.2	Bal	—
GH2036	GH36	11.5-13.5	70-90	—	1.1-1.4	—	≤0.10	Bal	0.25-0.5
GH2038	GH38A	10.0-12.5	18.0-21.0	—	—	≤0.50	2.3-2.8	Bal	—
GH2130	GH130	12.0-16.0	35.0-40.0	5.0-6.5	—	1.4-2.2	2.4-3.2	Bal	—
GH2132	GH132	13.5-16.0	24.0-27.0	—	1.0-1.5	≤0.40	1.75-2.3	Bal	—
GH2135	GH135	14.0-16.0	33.0-38.0	1.7-2.2	1.7-2.2	2.0-2.8	2.1-2.5	Bal	—
GH2136	GH136	13.0-16.0	24.5-28.5	—	1.0-1.75	≤0.35	2.4-3.2	Bal	—
GH2302	GH302	12.0-16.0	38.0-42.0	3.5-4.5	1.5-2.5	1.8-2.3	2.3-2.8	Bal	—
GH3030	GH30	19.0-22.0	74.3-77.5	—	—	≤0.15	0.15-0.35	≤1.5	—
GH3049	GH39	19.0-22.0	68.5-74.9	—	1.8-2.3	0.35-0.75	0.35-0.75	≤3.0	0.19-1.3
GH3044	GH44	23.5-26.5	49.3-55.7	13.0-16.0	≤0.50	≤0.50	0.3-0.7	≤4.0	—
GH3128	GH128	19.0-22.0	54.9-61.7	7.5-9.0	7.5-9.0	0.4-0.8	0.4-0.8	≤4.0	—
GH4033	GH33	19.0-22.0	69.1-73.9	—	—	0.6-1.0	2.4-2.8	≤2.0	—
GH4037	GH37	3.0-26.0	71.8-72.9	5.0-7.0	2.0-4.0	1.7-2.3	1.8-2.3	≤5.0	—
GH4043	GH43	15.0-19.0	59.4-69.3	2.0-3.5	4.0-6.0	1.0-1.7	1.9-2.8	≤5.0	0.5-1.3
GH4049	GH49	9.5-11.0	52.9-59.0	5.0-6.0	4.5-5.5	3.7-4.4	1.4-1.9	≤1.5	Co(14-16)
GH4080A	GH80A	18-21	Bal	—	—	1.00-1.80	1.80-2.70	≤1.5	—
GH4090	GH90	18-21	Bal	—	—	1.0-2.0	2.0-3.0	≤1.5	—
GH4133	GH33A	19.0-22.0	74.0-76.0	—	—	0.7-1.2	2.5-3.0	≤1.50	1.15-1.65
GH4169	GH169	17.0-21.0	50.0-55.0	—	2.8-3.3	0.2-0.6	0.65-1.15	Bal	4.75-5.5
