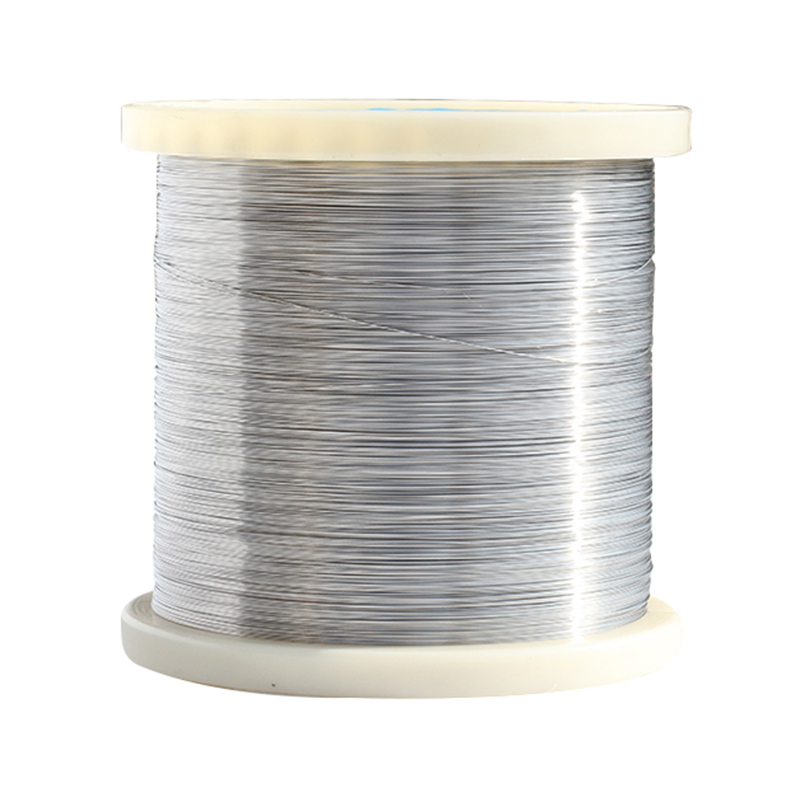

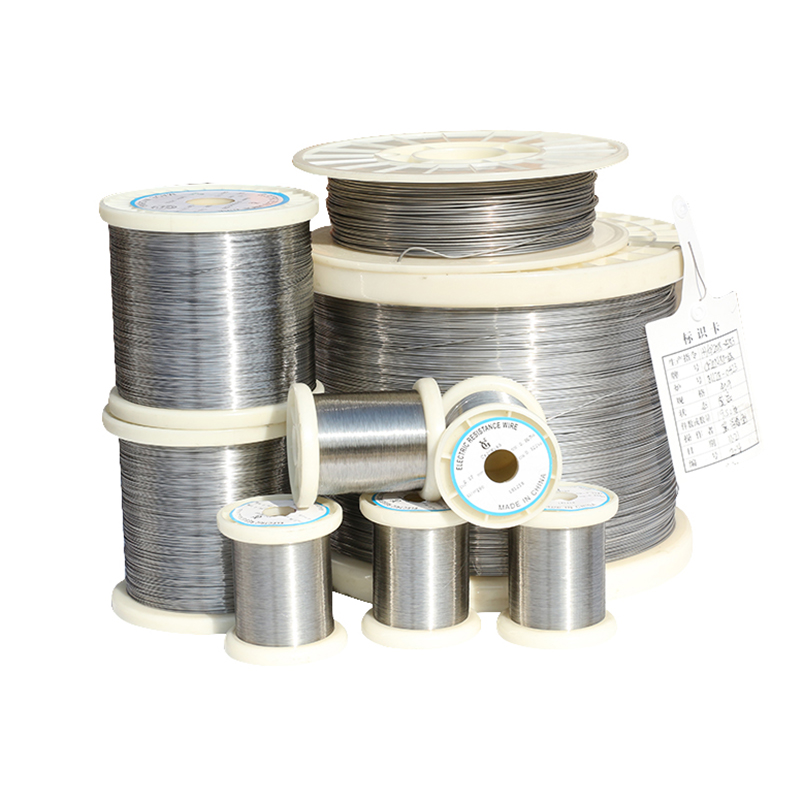

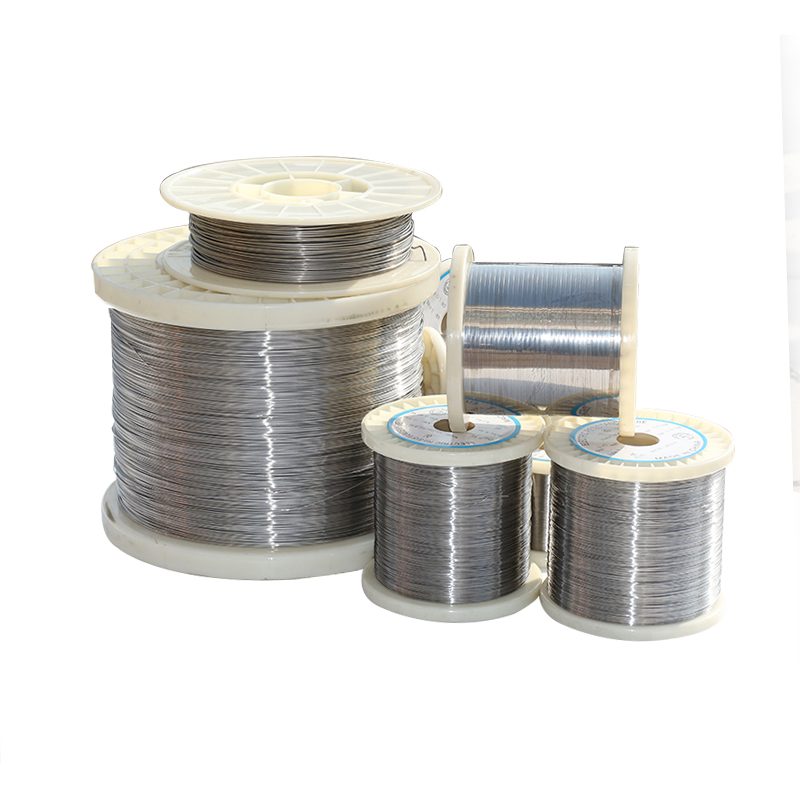

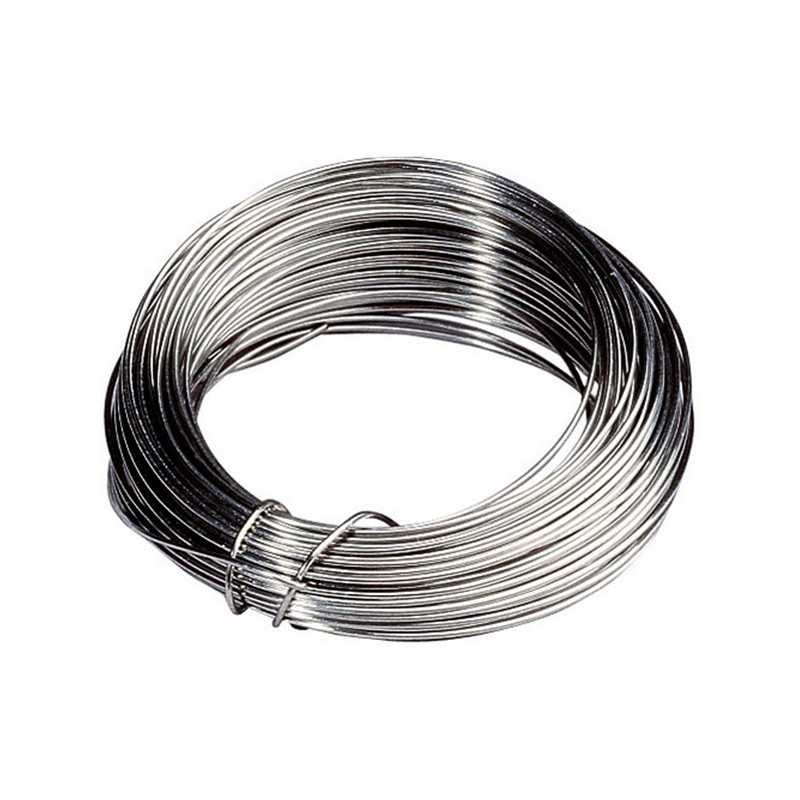

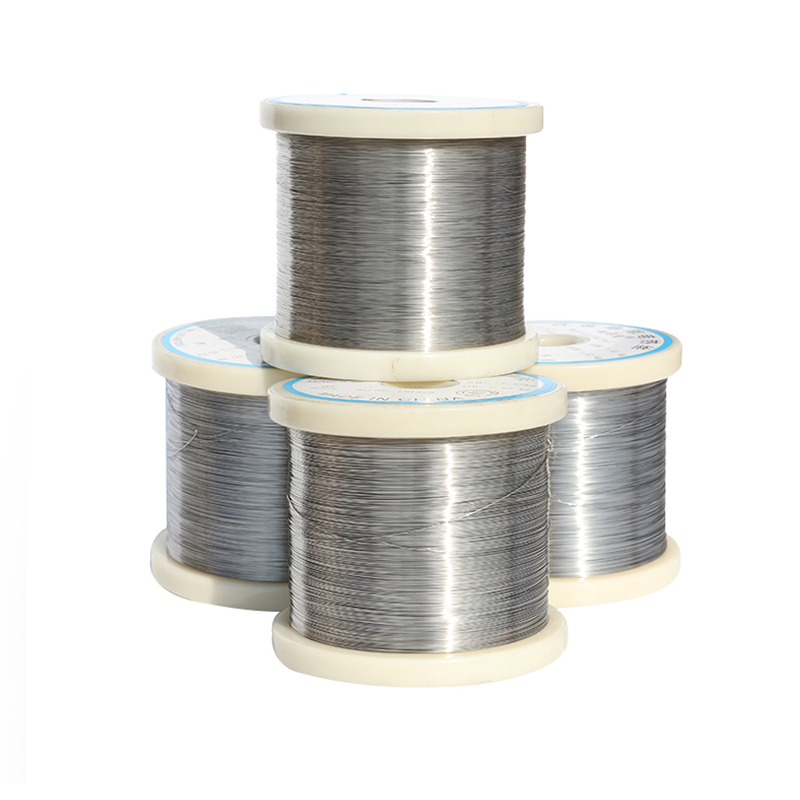

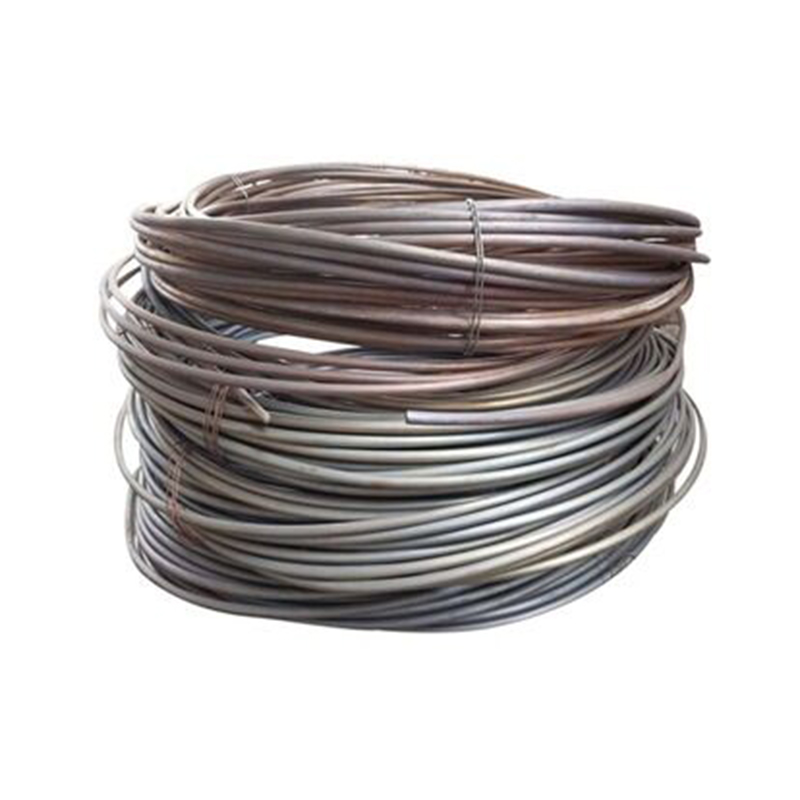

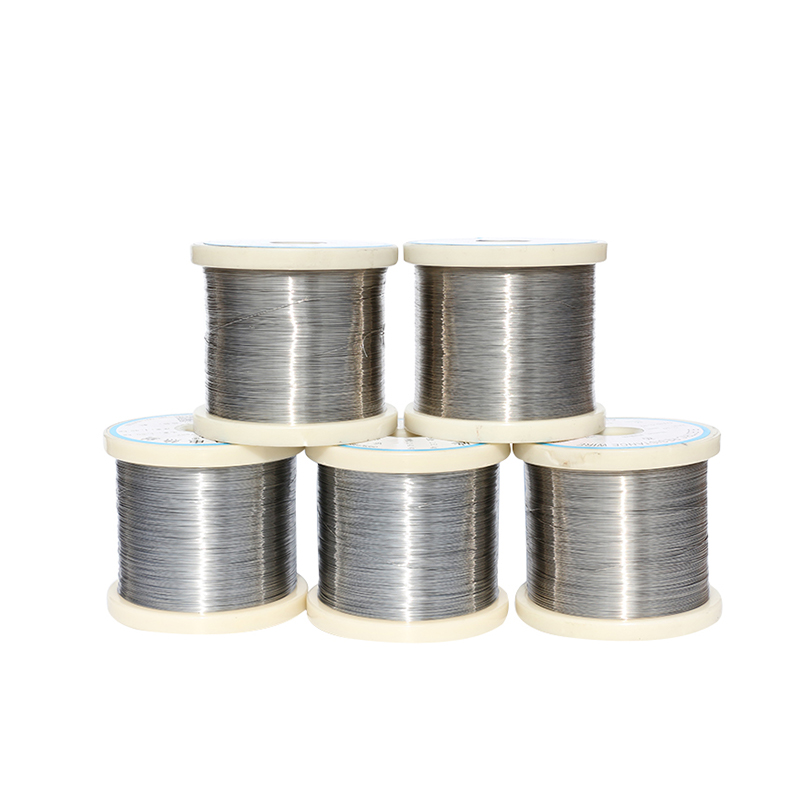

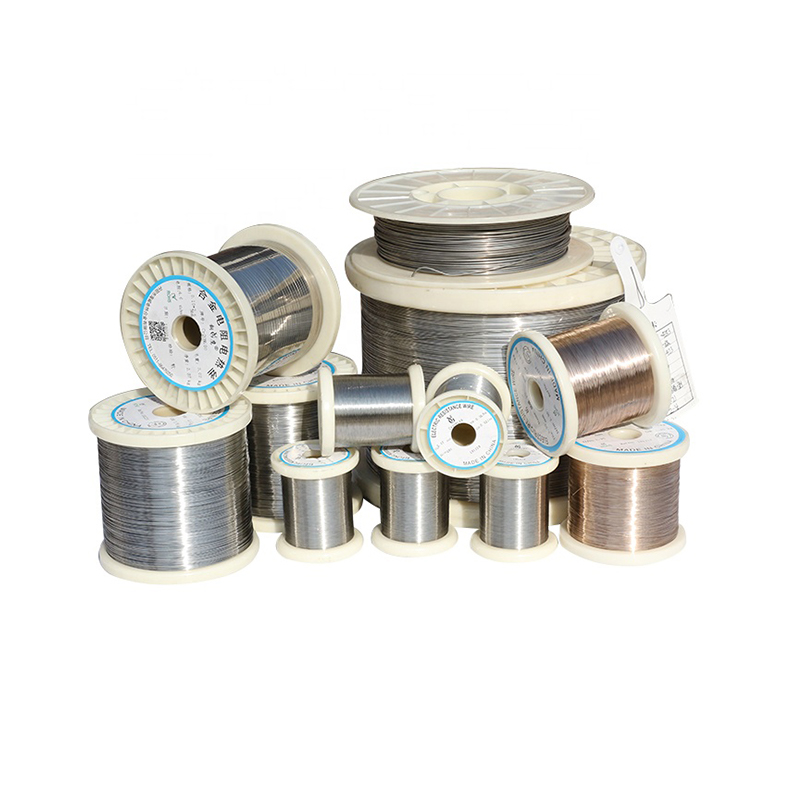

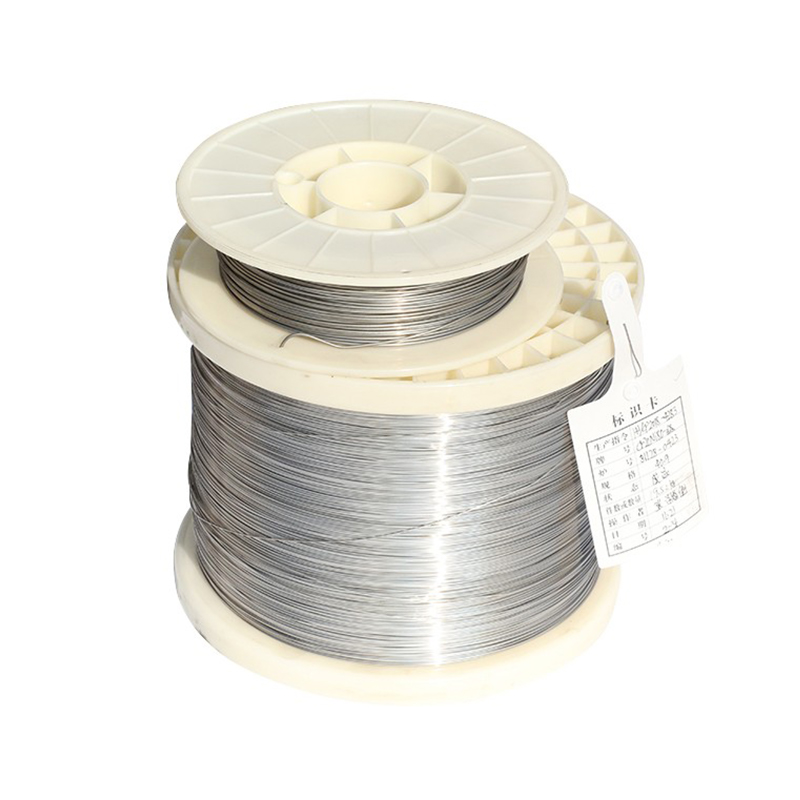

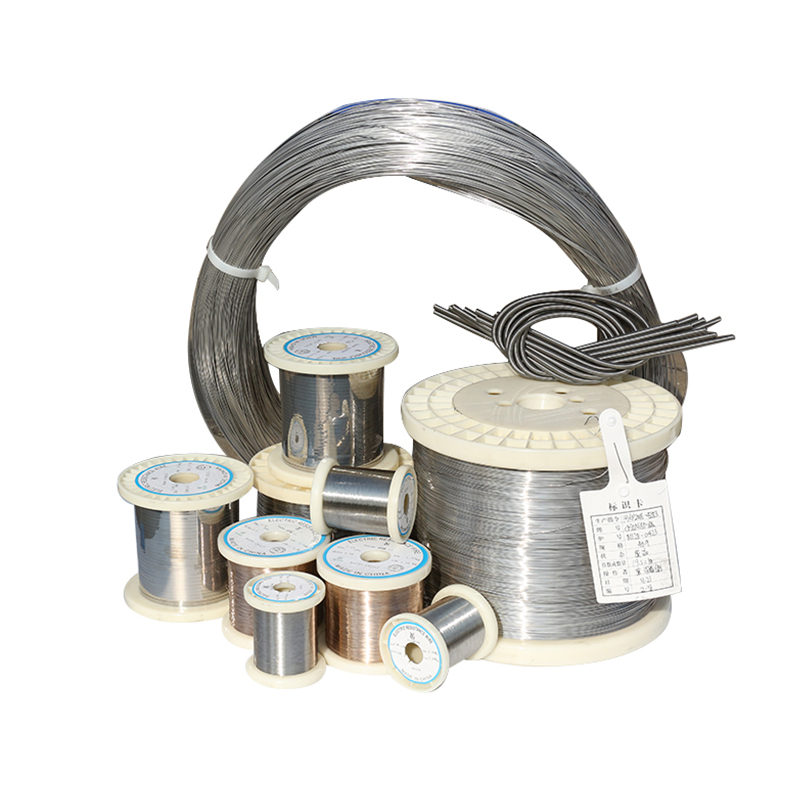

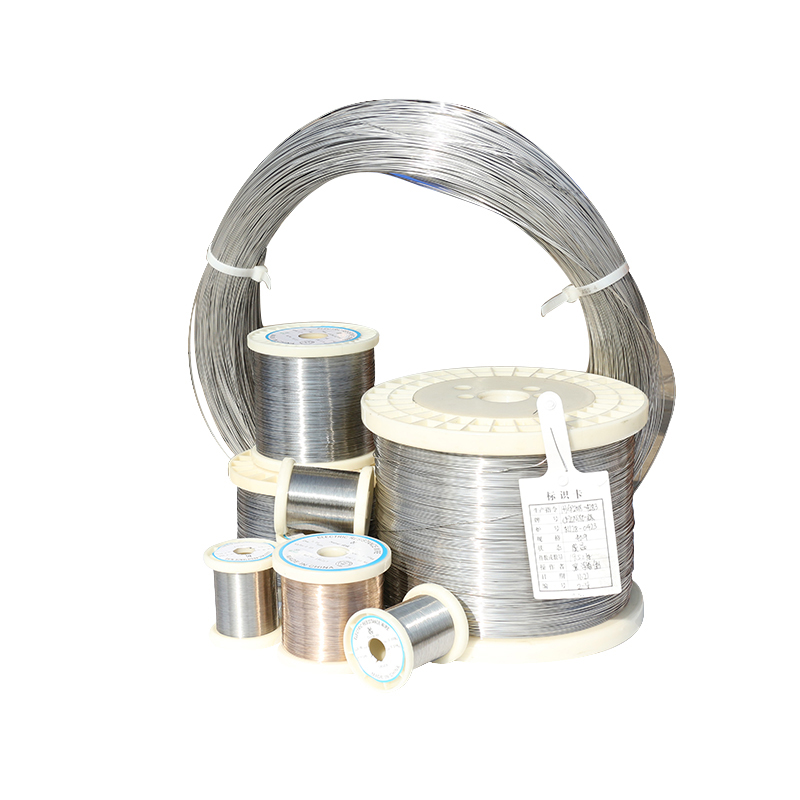

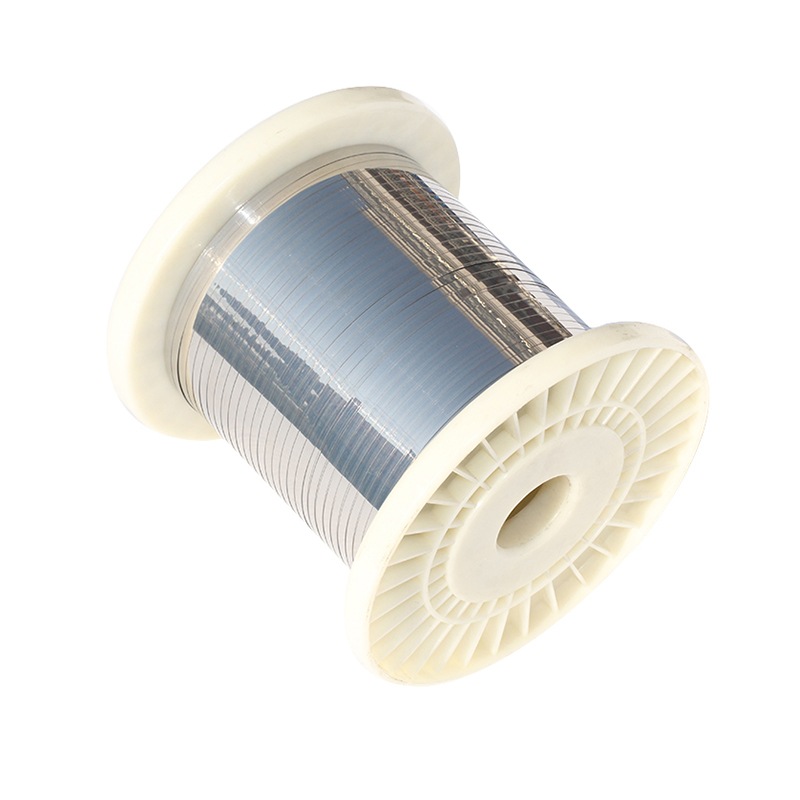

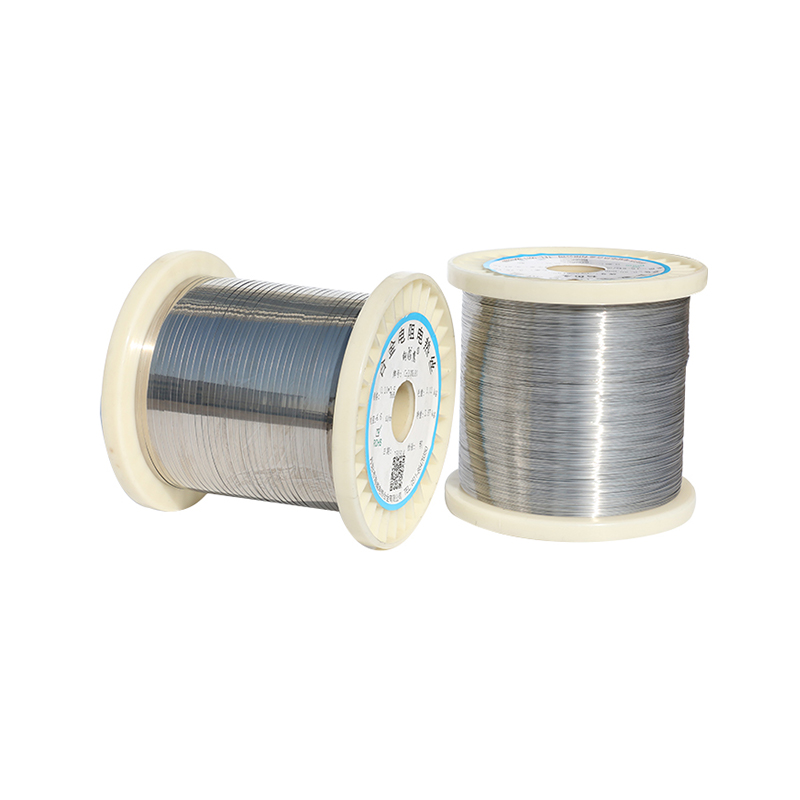

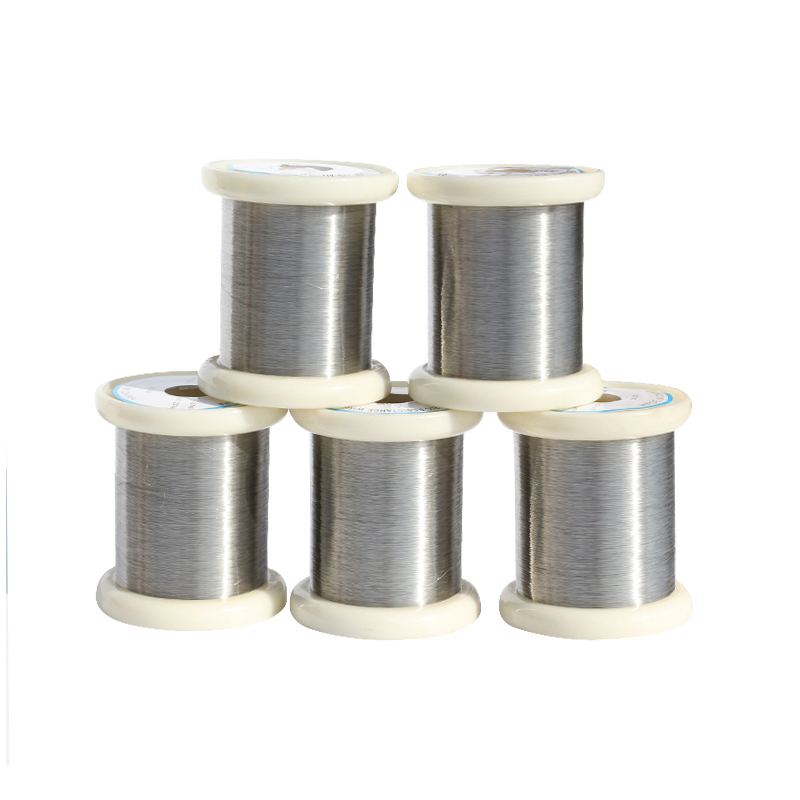

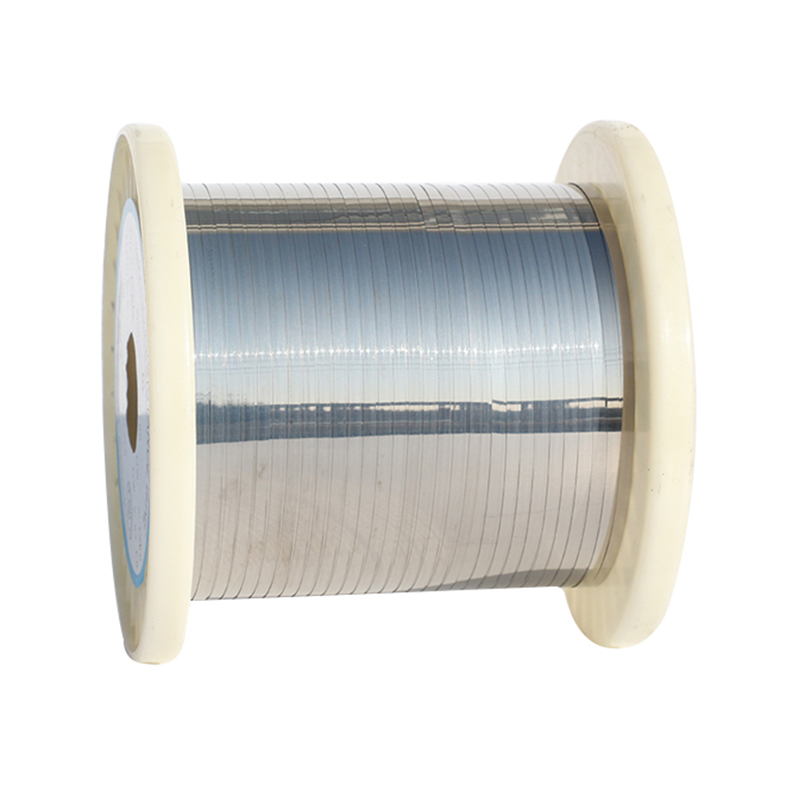

1CR13AL4 High-Resistance Iron Chromium Aluminum Alloy Wire

1CR13AL4 high-resistance iron-chromium-aluminum alloy wire belongs to the iron-chromium-aluminum series of heating alloys. Its core features are high resistivity, good processing performance, and cost advantages. This material is mainly composed of iron (Fe), chromium (Cr), and aluminum (Al), and contains trace amounts of rare earth elements (RE) to improve its oxidation resistance and lifespan. The 12.0%–15.0% chromium content is key to providing corrosion resistance; although this content is lower than in higher-grade alloys, it is sufficient to form a dense protective layer on the surface at medium temperatures of 950°C. The high melting point of 1450°C provides ample safety margin, preventing instantaneous melting due to accidental overload.

PREV：No previous article NEXT：1CR21AL4 Large Diameter Iron Chromium Aluminum Alloy

Specification
About Haiven
Contact Us

Grade		1Cr13Al4	10Cr21Al4	0Cr21Al6	0Cr23Al5	0Cr25Al5	0Cr21Al6Nb	0Cr27Al7Mo2
Main chemical composition (%)	Cr	12.0–15.0	17.0–21.0	19.0–22.0	20.5–23.5	23.0–26.0	21.0–23.0	26.5–27.8
	Al	4.0–6.0	2.0–4.0	5.0–7.0	4.2–5.3	4.5–6.5	5.0–7.0	6.0–7.0
	Fe	Bal	Bal	Bal	Bal	Bal	Bal	Bal
	Re	Opportune	Opportune	Opportune	Opportune	Opportune	Opportune	Opportune
	Mn	≤0.7	≤0.7	≤0.7	≤0.7	≤0.7	≤0.7	≤0.2
							Nb0.5	Mo:1.8–2.2
Max continuous service temp. of element (℃)		950	1100	1300	1250	1300	1350	1400
Melting point (℃)		1450	1500	1500	1500	1500	1510	1520
Density (g/cm³)		7.4	7.35	7.16	7.25	7.1	7.1	7.1
Resistivity (μΩ·m at 20℃)		1.25±0.08	1.23±0.06	1.42±0.07	1.35±0.06	1.45±0.07	1.45±0.07	1.53±0.07
Tensile strength (Mpa)		588–735	637–784	637–784	637–784	637–784	637–784	686–784
Elongation (%)		>16	>12	>12	>12	>12	>12	>10
Bending frequency		>5	>5	>5	>5	>5	>5	>5
Accelerated life test (h/℃)		-	≥80/1250	≥80/1300	≥80/1300	≥80/1300	≥50/1350	≥50/1350
Specific heat (J/g·℃)		0.49	0.49	0.52	0.46	0.494	0.494	0.494
Thermal conductivity (k J/m·h·℃)		52.7	46.9	63.2	60.1	46.1	46.1	45.2
Coefficient of linear expansion (20–1000℃, ×10⁻⁶/℃)		15.4	13.5	14.7	15	16	16	16
Hardness (HB)		200–260	200–260	200–260	200–260	200–260	200–260	200–260
Micro structure		Ferrite F	Ferrite F	Ferrite F	Ferrite F	Ferrite F	Ferrite F	Ferrite F
Magnetic		Yes	Yes	Yes	Yes	Yes	Yes	Yes
